1994 Model 15/45 By Wayne Schell

This is a public forum. This forum will be a place to show your Project Eagle and updates on progress you have made. Please make one thread with your project and put all updates in the same thread. Sorry... Eagles only.
Re: 1994 Model 15/45 By Wayne Schell
Mon Aug 30, 2010 3:14 pm


That's some pretty amazing stuff, right there! Now incorporate that 'vacuum suck down' thing from an MCI into the other side of the door and you will have the tightest sealing Eagle ever!
Dale Houston
1993 Eagle 15-45
Nashville, TN
User avatar
Songman
Club Member
Club Member

Posts: 2107
Joined: Tue Oct 07, 2008 1:48 am
Location: Nashville, TN


Re: 1994 Model 15/45 By Wayne Schell
Tue Aug 31, 2010 9:39 am


Wow!!!
Bill
1978 05 Eagle with 450HP Cummins ISM / Allison HT740
Started in 1996 and still an in-progress hobby.
User avatar
gpzzdrm
Club Member
Club Member

Posts: 524
Joined: Fri Oct 10, 2008 1:25 pm
Location: Carson City, NV


Re: 1994 Model 15/45 By Wayne Schell
Wed Sep 01, 2010 9:00 pm


You might try using magnetic locks Wayne. Using a couple electric solenoids like they use on doors with a cam to pull them in could also be made to work.
BTW, your hinges look great. I used the same style but much cruder on my bus 15 years ago (about what K S had in BCM a while back).
Keep up the good work,Hal
Hal
Club Member
Club Member

Posts: 73
Joined: Mon Jan 05, 2009 4:25 pm


Re: 1994 Model 15/45 By Wayne Schell
Thu Sep 02, 2010 7:57 am


Thank You all. Some sort of electric magnet or solenoid makes the most sence. The only time the lock is needed is when you are driving down the road. The problem I see is having it work when you open the door. Maybe a relay tied to neutral on the shift pad. When the trans is in neutral the lock is open. Or maybe tied to the park brake. When the park brake is set the lock is open. Any thoughts?

Thank You Wayne
User avatar
rusty
Board Member
Board Member

Posts: 1371
Joined: Thu Oct 09, 2008 3:22 pm
Location: Johnstown Co.


Re: 1994 Model 15/45 By Wayne Schell
Thu Sep 02, 2010 8:43 am


Wayne, nice work on the billet hinges, very impressive. you might do some research on magnetronic locks, here you will find a starting point for your search http://www.magneticlocks.net/products.asp?cat=10
years ago back when the bank kiosk became all the craze, we were installing these as the primary lock for thge kiosk front doors (alum) so customers could gain access to the 24/7 teller machines. these were pretty effective at the time although the doors were not, doors were being ripped down by intruders but the lock and plates would remain in place after the may lay. good luck and lett us know what you come up with for the solution. Van
van
Club Member
Club Member

Posts: 1437
Joined: Mon Oct 13, 2008 1:35 pm


Re: 1994 Model 15/45 By Wayne Schell
Thu Sep 02, 2010 10:53 am


It would be simple to use a limit switch at the door handle to over ride the ignition switch. Of course you'd want the whole system disabled when the vehicle is parked. The tall 15 doors can use all the help they can get. Hal
Hal
Club Member
Club Member

Posts: 73
Joined: Mon Jan 05, 2009 4:25 pm


Re: 1994 Model 15/45 By Wayne Schell
Fri Apr 22, 2011 2:44 pm


Post # 12 Hydraulic Clutch
With the autoshift transmission you need a clutch to get things strarted. I am not the first to use a hydraulic clutch in a bus. After watching several people do the conversion I decided to use a hydraulic clutch from a Volvo truck. In a truck they did not use any sort of assistance with the clutch. In a bus the master cylinder and the slave cylinder are 40 feet apart and there is some line friction to overcome. I decided to use the air assist parts from the Eagle bus for my assist. This consists of a control valve and an air cylinder. The control valve is mounted between the clutch pedal and the master cylinder. The air cylinder is mounted on the master cylinder linkage. When the clutch pedal is depressed and resistance is encountered the valve will open letting air thru to the air cylinder and help move the master cylinder. I used a clutch pedal from a cabover truck (I don't remember the brand). I mounted the clutch pedal and the fabricated arms on a shaft that has bearings on both ends. I had to fabricate the arms to get the proper travel.
The master cylinder and the air cylinder are mouted in the spare tire compartment. The master cylinder moves 1 1/4 inches and the air cylinder moves 2 inhes. I mounted both cylinders on the same arm at different positions so both will have maximum travel. I could not find a mount for the slave cylinder so I fabricated one. I will use stianless steel tubing between the master cylinder and the slave cylinder. You can use rubber hose but make sure you use a hose that does not expand under pressure. If the hose expands it will affect the travel of the slave cylinder.

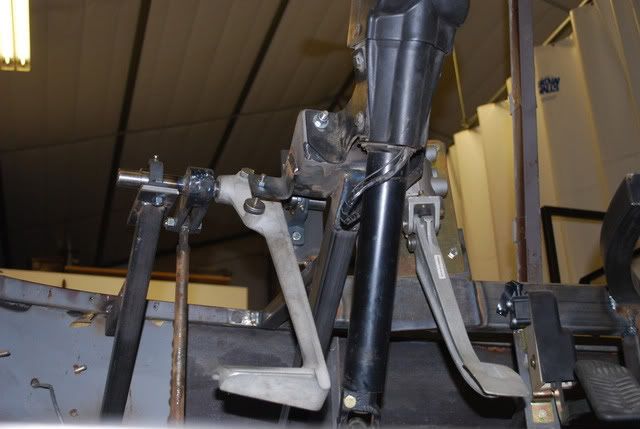

Clutch pedal and linkage

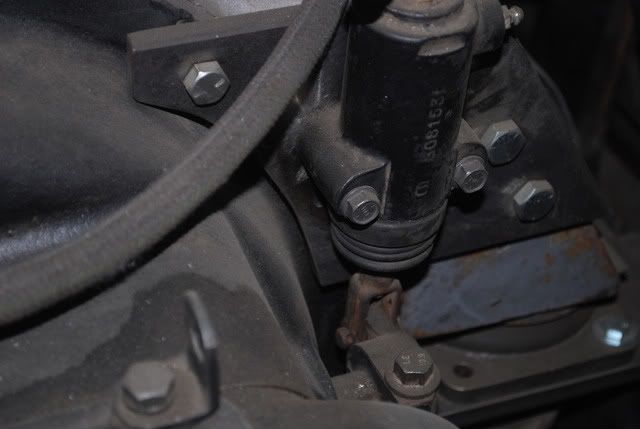

Control Valve

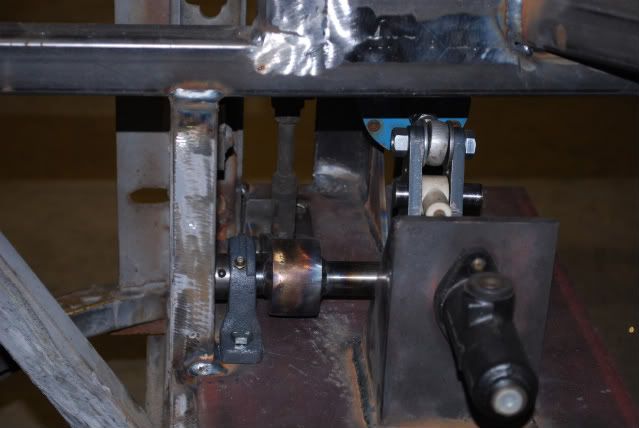

Master Cylinder

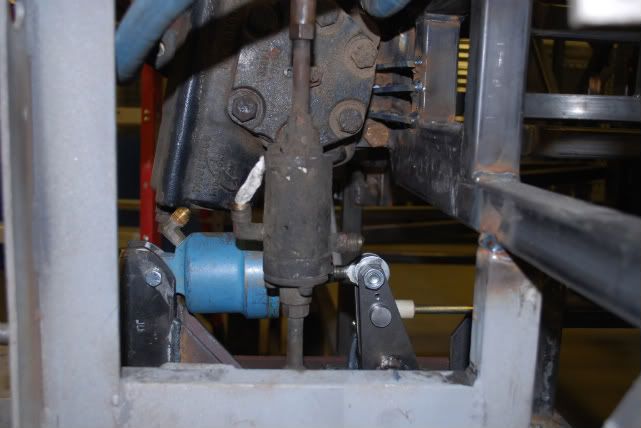

Air Cylinder and Master Cylinder

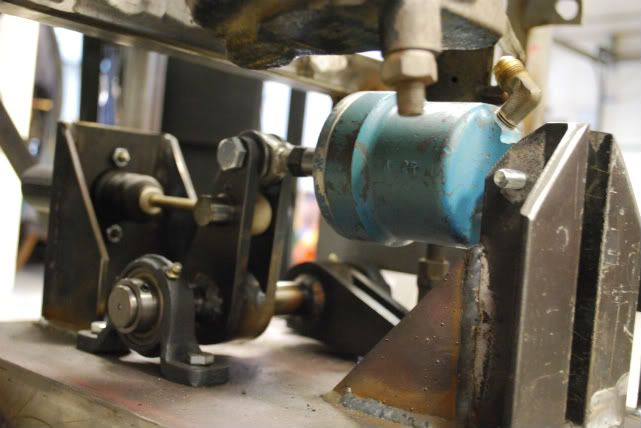

Air Cylinder and linkage

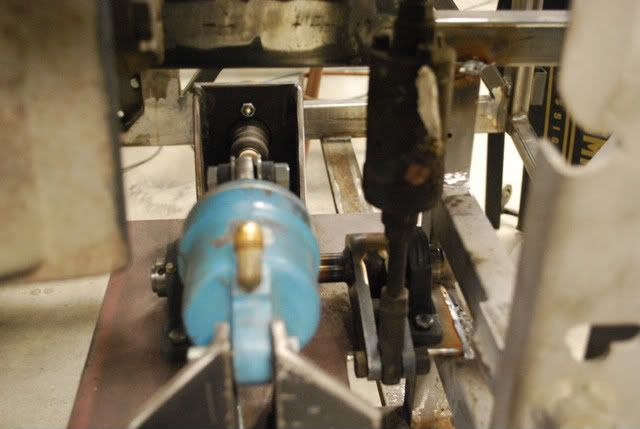

Slave Cylinder and mount
User avatar
rusty
Board Member
Board Member

Posts: 1371
Joined: Thu Oct 09, 2008 3:22 pm
Location: Johnstown Co.


Re: 1994 Model 15/45 By Wayne Schell
Fri Apr 22, 2011 4:37 pm


Nice work Wayne your making progress :D
Andy Wright 68 Silver Eagle Model 5 8V92 #7481
User avatar
Eagle Andy
Club Member
Club Member

Posts: 1024
Joined: Tue Oct 14, 2008 4:37 pm
Location: Miles city Mt


Re: 1994 Model 15/45 By Wayne Schell
Fri Apr 22, 2011 5:27 pm


Nice work. Pedal looks like an I/H
DaveG

Posts: 118
Joined: Mon Feb 15, 2010 9:48 pm
Location: Redding, CA


Re: 1994 Model 15/45 By Wayne Schell
Fri Apr 22, 2011 7:17 pm


Looking good Wayne! I'm surprised you find the time traveling around the country to the Eagle rallies! ;)
Becky & Paul Lawry
Dreamscape
1968 Eagle 01 #7443
Silver 8V92 HT 740

Dreamscape Eagle Travel Blog: https://dreamscapetravels.wordpress.com/

Dreamscape Build Blog: https://dreamscapesilvereagle.wordpress.com/
User avatar
Dreamscape

Posts: 3018
Joined: Mon Oct 13, 2008 1:03 pm
Location: Full Timing - On The Road
