1994 Model 15/45 By Wayne Schell

This is a public forum. This forum will be a place to show your Project Eagle and updates on progress you have made. Please make one thread with your project and put all updates in the same thread. Sorry... Eagles only.
Re: 1994 Model 15/45 By Wayne Schell
Mon May 03, 2010 7:01 am


Don, I only take pictures where the floor is clean :lol: .
User avatar
rusty
Board Member
Board Member

Posts: 1371
Joined: Thu Oct 09, 2008 3:22 pm
Location: Johnstown Co.


Re: 1994 Model 15/45 By Wayne Schell
Tue May 04, 2010 12:28 pm


rusty wrote:Don, I only take pictures where the floor is clean :lol: .


I just open my bay doors and my floor is dirty!

BCO
BoxcarOkie

Posts: 538
Joined: Thu May 21, 2009 7:42 pm


Re: 1994 Model 15/45 By Wayne Schell
Tue May 04, 2010 1:12 pm


BoxcarOkie wrote:
rusty wrote:Don, I only take pictures where the floor is clean :lol: .


I just open my bay doors and my floor is dirty!

BCO


At least you have a floor! :lol:
Becky & Paul Lawry
Dreamscape
1968 Eagle 01 #7443
Silver 8V92 HT 740

Dreamscape Eagle Travel Blog: https://dreamscapetravels.wordpress.com/

Dreamscape Build Blog: https://dreamscapesilvereagle.wordpress.com/
User avatar
Dreamscape

Posts: 3018
Joined: Mon Oct 13, 2008 1:03 pm
Location: Full Timing - On The Road


Re: 1994 Model 15/45 By Wayne Schell
Thu May 06, 2010 10:43 am


I suppose it is all in how you look at it.

BCO
BoxcarOkie

Posts: 538
Joined: Thu May 21, 2009 7:42 pm


Re: 1994 Model 15/45 By Wayne Schell
Tue May 11, 2010 7:36 pm


GREAT Work Wayne.

I Didnt Know You Were A Machinist.? If You Ever Need A Mill Or Lathe Moved In Or Out.....Give Me A Shout. Thats What I Do....
10-4

Please Keep The Pictures Coming.

JOHN
John & Stephanie
1972 Silver Eagle 05 8V71 4 Speed Man.(TRAILWAYS)
1984 Eagle 10 45 Foot... 60 Series / B500
User avatar
MrBreeze
Club Member
Club Member

Posts: 558
Joined: Thu Oct 29, 2009 10:42 pm


Re: 1994 Model 15/45 By Wayne Schell
Thu May 13, 2010 7:06 am


John, I don't think I can call myself a machinist, I like to mess around with the mill and lathe. I can say it would be hard to do the things I do without them. I hope I never have to move them but if I do I will make sure I call you.

Thank You Wayne
User avatar
rusty
Board Member
Board Member

Posts: 1371
Joined: Thu Oct 09, 2008 3:22 pm
Location: Johnstown Co.


Re: 1994 Model 15/45 By Wayne Schell
Thu May 13, 2010 10:44 pm


Wayne,

If you have to ship that mill or lathe I can crate it for you! Domestic of Export....

Dave
1990 Eagle 15 Under Construction
Cummins M-11 Celect Plus
Allison 746, T drive axle
User avatar
Two Feathers
Club Member
Club Member

Posts: 123
Joined: Tue Oct 14, 2008 4:43 pm


Re: 1994 Model 15/45 By Wayne Schell
Mon Aug 30, 2010 9:37 am


Post 11 Entry Door Hinge
With the help of Kentucky Steve I went about building my entry door hinges. I like the hidden hinge that Steve built. I used his design with a few modifications. I wanted internal springs to slow the door down at the end when all the way open. Also a way to hold the door open. This part is not done as I have to finish the frame around the hinge to hold that part of the hinge. I milled the hinge out of a solid block of aluminum. I milled a place in each end of the hinge for a roller bearing and a race for a thrust bearing. I used a rotary table to mill the hinges to get a true radius. I milled the door mounting plate seperate and then bolted them together. Those two pieces will also be welded together. The half of the hinge that mounts to the frame of the bus was milled from a block of steel. I then added the angled piece that holds the spring to that part of the hinge. The springs are held in place with screws. I mounted a sheet metal piece to the hinge where the spring contact the hinge to protect the aluminum. A 1/2 inch steel plate is mounted to the door mounting plate so the door can be welded to the hinge. The aluminum mounting plate has oversized holes so the door can be adjusted if need be. The frame side of the hinge was welded to the frame in two stages.First , clamped to the bench so it will stay straight I welded the two hinges together with 1 1/2 tubing between them. When I milled the hinge pieces the end were milled to fit inside the 1 1/2 tubing. The second stage was to weld that assembly to the bus frame. There will be a later post about the mechanism that holds the door open and the door itself. I am trying to come up with a latch for the upper part of the door. The thing I am struggling with is how to open both the upper and lower latch with the same handle. If you have any ideas please let me know.


Solid block of Aliminum

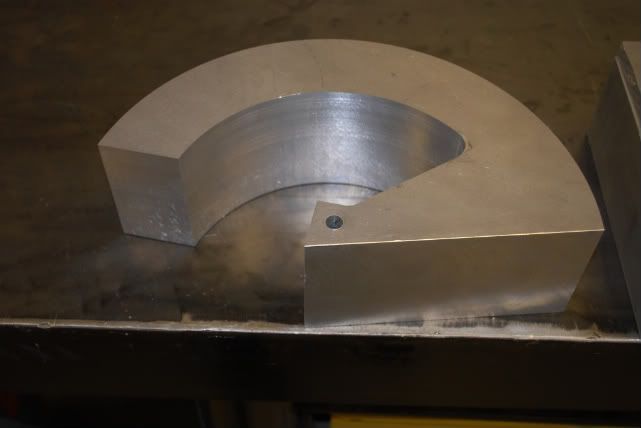

Milled hinge

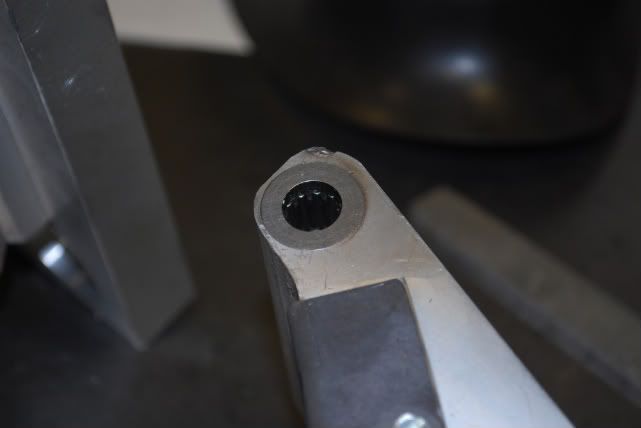

Neddle bearing and race for thrust bearing in place

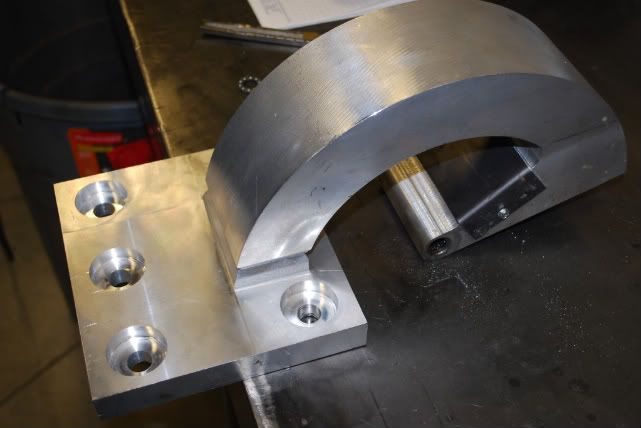

Hinge and mounting plate

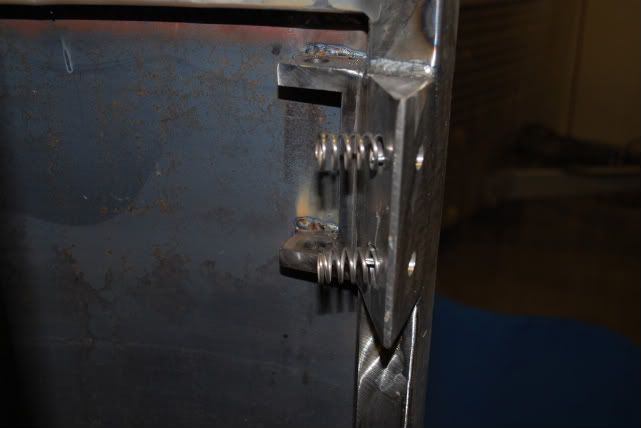

Frame hinge with spring

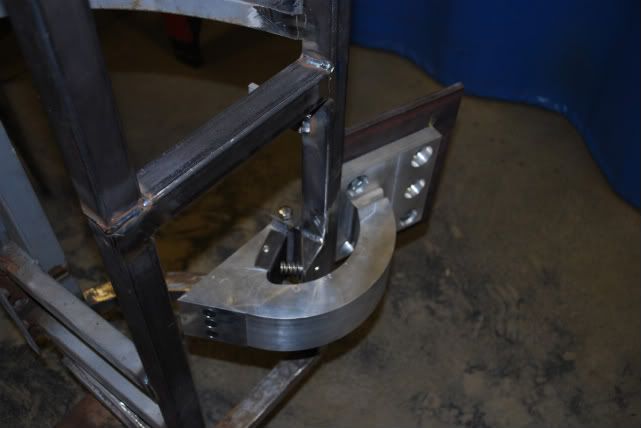

Lower hinge in place

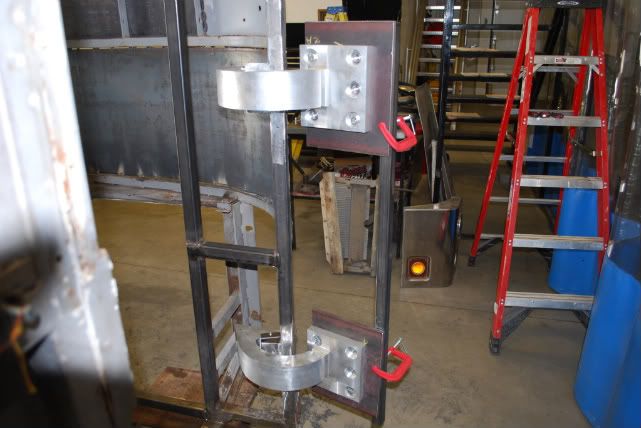

Both hinges in place
User avatar
rusty
Board Member
Board Member

Posts: 1371
Joined: Thu Oct 09, 2008 3:22 pm
Location: Johnstown Co.


Re: 1994 Model 15/45 By Wayne Schell
Mon Aug 30, 2010 11:05 am


I am always amazed at the talent we find on this board! Wayne, you do some amazing detail work. Some I understand and some I'll leave up to the experts! Very nice work! 8-)
Becky & Paul Lawry
Dreamscape
1968 Eagle 01 #7443
Silver 8V92 HT 740

Dreamscape Eagle Travel Blog: https://dreamscapetravels.wordpress.com/

Dreamscape Build Blog: https://dreamscapesilvereagle.wordpress.com/
User avatar
Dreamscape

Posts: 3018
Joined: Mon Oct 13, 2008 1:03 pm
Location: Full Timing - On The Road


Re: 1994 Model 15/45 By Wayne Schell
Mon Aug 30, 2010 12:35 pm


Son Of A Buck Wayne. Just go ahead & set the standard will ya. ;) I'm in augh & much liking what I see. Keep er goin!
John & Tara Mellis
Bowman, SC
1982 Eagle Model 10 DD 6V92 Allison Auto
It's not the years in your life that count. It's the life in your years...
User avatar
John Mellis
Board Member
Board Member

Posts: 457
Joined: Fri Jan 09, 2009 9:44 pm
Location: Bowman, SC
